Online catalogue > Rigging > Stainless Steel Turnbuckles > FORK & FORK TURNBUCKLES

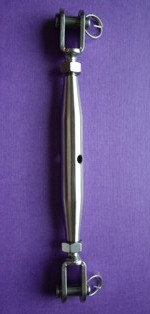

FORK & FORK STAINLESS STEEL TURNBUCKLE

These Stainless Steel Turnbuckles primarily used for Standing Rigging, however they can be used for other purposes such as Guard Rails.

The Removable clevis pin at each end allows connection to:

    Swaged/Swageless Eyes,
    Deck eyes,
    Pad Eyes,
    U Bolts
    Guardrail stanchion rings.

Screw threads at either end allow wires to be tightened to required tension.

Available in various sizes.

FORK & FORK STAINLESS STEEL TURNBUCKLE

Discounts & Payment

5% over £250 : 7% over £500 : 10% over £1000 : 12% over £1500

Payment may be by PayPal through this shop, or via telephone using major Credit and Debit Cards or by mail with a cheque.

M5 THREAD, FORK & FORK STAINLESS STEEL TURNBUCKLE Ref: RiY28M5

Jaw opening = 10mm, Pin Dia = 5mm, Body length = 80mm
Closed Length = 125mm (Mid Pin - Mid Pin)
Open Length = 175mm (Mid Pin - Mid Pin)


Price:   £5.01 (Including: VAT at 17.5%)

Quantity:

M6 THREAD, FORK & FORK STAINLESS STEEL TURNBUCKLE Ref: RiY28M6

Jaw opening = 9mm, Pin Dia = 6mm, Body length = 92mm
Closed Length = 140mm (Mid Pin - Mid Pin)
Open Length = 205mm (Mid Pin - Mid Pin)

Price:   £6.00 (Including: VAT at 17.5%)

Quantity:

M8 THREAD, FORK & FORK STAINLESS STEEL TURNBUCKLE Ref: RiY28M8

Jaw opening = 11mm, Pin Dia = 8mm, Body length = 110mm
Closed Length = 170mm (Mid Pin - Mid Pin)
Open Length = 250mm (Mid Pin - Mid Pin)

Price:   £8.00 (Including: VAT at 17.5%)

Quantity:

M10 THREAD, FORK & FORK STAINLESS STEEL TURNBUCKLE Ref: RiY28M10

Jaw opening = 12.5mm, Pin Dia = 9mm, Body length = 125mm
Closed Length = 200mm (Mid Pin - Mid Pin)
Open Length = 295mm (Mid Pin - Mid Pin)

Price:   £10.00 (Including: VAT at 17.5%)

Quantity:

M12 THREAD, FORK & FORK STAINLESS STEEL TURNBUCKLE Ref: RiY28M12

Jaw opening = 14mm, Pin Dia = 12mm, Body length = 150mm
Closed Length = 250mm (Mid Pin - Mid Pin)
Open Length = 345mm (Mid Pin - Mid Pin)

Price:   £13.99 (Including: VAT at 17.5%)

Quantity:
