8 Strand (Multi-plait) Eye Splice


Tools Required Tools Required

Click on the links to purchase items.

8 Strand Rope

Swedish Fids

Sharp knife & Scissors

Cutting Board

3 x Electrical Tape (different colours, one the same colour as the rope)

Waxed Whipping Twine or Polyester Thread

Superglue.

General Splicing Tools & Accessories

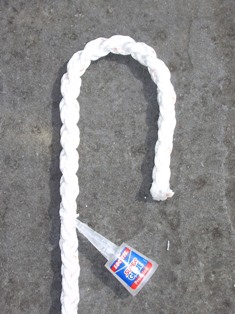

Step 1

Put a whipping on the Multi-plait about 12 x the diameter of the rope from the end.

Use a basic overhand knot one side and a reef knot on the other and cut off the ends.

Finish off with a drop of super glue to prevent the reef knot from undoing.

Step1

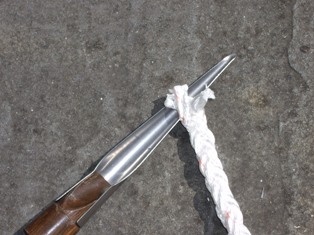

Step2 Step 2

Break the heat sealed ends with a Swedish Fid.

It is better to break the heat seal, than cut the rope as the heat seal stops the ends from fraying.


Step 3

You will notice that 2 pairs are twisted clockwise and the other 2 pairs are twisted anti-clockwise.

Unravel the pairs down to the whipping twine.

Then taking the clockwise pairs, one at a time, unravel the twist in the pairs and tape up at their ends using one colour tape. (We've used Blue)

Do the same with the anti-clockwise pairs, but use a different colour tape. (We've used Yellow)

You should end up as in the image.

Step3

Step4 Step 4

Form the eye, laying one pair of Blue and one pair of Yellow on the lower side (closest to the ground in the picture), and the other Blue and Yellow pairs on the upper side. (closest to you in the picture)

Now to start Splicing.The first two tucks use the blue and yellow pair on the upper side.

Tuck the blue pair (closest to the eye) under the closest pair in the rope.

Then tuck the yellow pair (furtherest from the eye) under the next pair down in the rope.

The picture shows the yellow pair being tucked.


Close up of Step 4close up 1

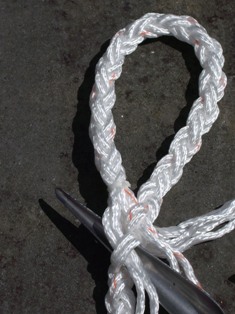

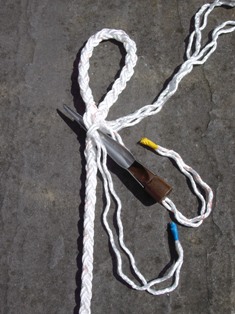

Step5 Step 5

Turn rope over 180 degrees to tuck third and fourth pairs.

Tuck the yellow pair (closest to the eye) under the closest pair in the rope.

Then tuck the blue pair (furtherest from the eye) under the next pair down in the rope. (See image).


Close up of Step 5close up 2

Step6 Step 6

Once Four pairs have been tucked once, it should look like the image.

Now it is simply a matter of plaiting the strands following the natural path under the next pair down in the rope.


Step 7

Looking at the splice from underneath, the pair that are closest to the eye (in this case the Blue pair on the right), run them along their natural course, and tuck them under the first pair they come to.

Step7

Step8 Step 8

Next pair down from the eye (Yellow on the left), run them along their natural course, and tuck them under the pair they come to, as viewed in the image.

The third pair down from the eye (Yellow on the right), run them along their natural course and tuck them under the pair they come to. (there is no image showing this third pair being tucked)


Step 9

The final and fourth pair in this sequence (blue on the left), run them along their natural course and tuck them under the pair they come to.

Step9

Step10 Step 10

This image shows the completed second set of tucks.

Now turn the splice/eye over 180 degrees and do exactly the same as Steps 7 - 9 a further three times.

Total of five sequences of tucks, remembering to turn 180 degrees after each sequence.

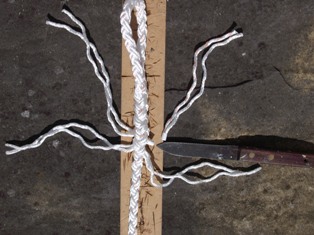

Step 11

Now take the tape off all strands.

Twist each pair together with the lay and tape up at the base of the strands using electrical tape the same colour as the rope.

Cut each pair in the centre of the tape.

Step11

Step12 Step 12

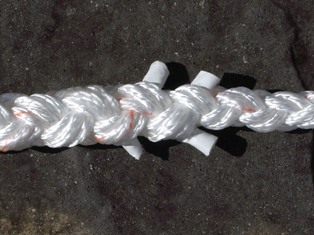

Super glue the ends and edges of the tape to prevent unravelling.


Close up of finished ends.close up 3

finished splice The Finished Splice

Find items in our shop

To purchase any of the tools required for this splice, please click on a links below.

General Splicing Tools & Accessories

Swedish Fids


Return to Splicing Guides

Return to Useful Information List
